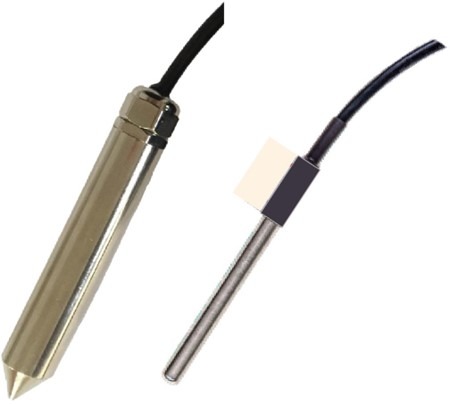

The BS500-01 Soil/Liquid Temperature Sensor accurately measures soil or water temperature, making it ideal for automatic weather stations, soil monitoring, and reservoirs. It can be directly inserted into soil or submerged in water for reliable readings.
Equipped with a precision thermal resistor and built-in signal processing, including amplification, zero drift correction, and temperature compensation, the sensor ensures high accuracy, excellent stability, and long-term reliability across various environmental conditions.
Specifications
Item | Technical Specifications |
Range | -20 ~ 50°C , -50 ~ 100°C |
Supply | 5VDC, 12 ~ 24VDC |
Accuracy | ±0.5°C |
Response Time | <1s |
Output Signal | PT100/PT1000 Class A (3-Wires), 4 ~ 20mA, 0 ~ 5V, RS485 |
Operating Temperature | -50°C ~ 80°C |
Ingress Protection (Probe) | IP68 |
Storage | 10-60°C @20%-60%RH |

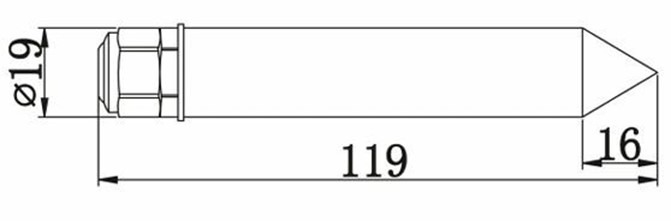

Size |
|
Probe Weight (Unpacked) | 145g |
Housing Material | 304 Stainless Steel |
Ground Temperature
Weather Station
Environmental Monitoring
Agriculture
