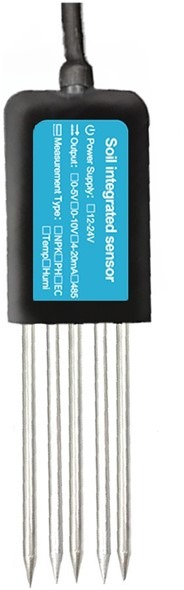

The BS-S7 Soil Integrated Sensor is a high-precision, multi-parameter soil sensor designed for real-time monitoring of soil nutrients (NPK), pH, electrical conductivity (EC), moisture, temperature, and humidity. It provides accurate measurements, fast response, and stable signal output, making it ideal for precision agriculture and environmental monitoring.
Designed for long-term underground deployment, the sensor features vacuum potting, full waterproof protection, and strong resistance to electrolysis and corrosion, ensuring reliable performance in harsh and variable soil conditions.
Specifications
Item | Specification |
Power Supply | 12-24V DC |
Output Signal | RS485/4G/NB-IoT/ LORA |
Protection Level | IP68 |
Temperature Measuring Range | -45°C ~ 115°C |
Moisture Measuring Range | 0-100%RH |
PH Measuring Range | 3-6PH |
NPK Measuring Range | 0-1666mg/kg |
EC Measuring Range | 0-10000us/cm |
Temperature Precision | ±0.5°C |
Moisture Precision |
|
PH Precision | ±0.3PH |
NPK Precision | 2% F.s |
EC Resolution | 10us/cm |
Response Time | ＜1s |
