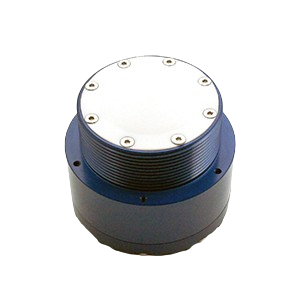

The Geolux LX80 is a high-performance, non-contact radar sensor designed for accurate water level measurement using 80 GHz technology. It delivers stable and precise readings in all weather conditions by analyzing reflected radar signals from the water surface. With low power consumption, the LX80 is ideal for remote and long-term monitoring applications.
Specifications
| Parameter | Specification |
|---|---|
| Model Name |
|
| Radar Type | W-band 77–81 GHz FMCW radar |
| Beam Angle | 5° |
| Detection Distance | 8 m / 15 m / 30 m / 50 m |
| Blind Zone | 0.2 m |
| Resolution | 0.5 mm |
| Accuracy | ± 2 mm |
| Sampling Frequency | 1 sps / 10 sps optional / 20 sps optional |
| IP Rating | IP68 |
| Serial Interface |
|
| Serial Baud Rate | 9600 bps to 115200 bps |
| Serial Protocols | Modbus, GLX-NMEA |
| Analog Interface | 4–20 mA |
| Other Interfaces | SDI-12 |
| Connector | M12 circular 12-pin |
| Input Voltage | 9 to 27 VDC |
| Power Consumption | 0.36 W operational; 0.15 W standby; 0.03 W sleep; 0.6 W extended |
| Maximal Current | < 470 mA |
| Temperature Range | -40 °C to +85 °C (without heating or coolers) |
| Enclosure Dimensions | 65 mm x H 78 mm |
Early Flood Warning System
Monitoring Levels in Waste Water
Water Level Monitoring for Rivers
Observing Level of Fluids in the Chemical Industry
