Introduction to Sensor

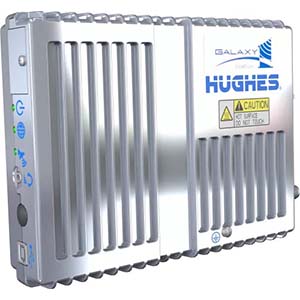

The HUGHES9502 is a compact, fully integrated solution designed to deliver reliable, real-time IP communications for remote stations. Powered by the Inmarsat Broadband Global Area Network (BGAN), it ensures seamless and dependable end-to-end connectivity—even in the most isolated locations. The Hughes 9502 terminal enables effortless integration with Campbell Scientific software, while also supporting a wide range of IP protocols compatible with our hardware systems.
Specifications
| Nominal Input Voltage | +12 Vdc or +24 Vdc |
| SIM Card Type | USIM (USIM already included) |
| Water & Dust Ingress Protection Rating | IP-40 Compliant |
| Operating Temperature Range | -40° to +75°C |
| Storage Temperature Range | -55° to +75°C |
| Humidity Tolerance | 95% RH (at +40°C) |
| Transmission Distance or Area | Worldwide between +70° and -70° latitude |
| Service Requirements | Needs a USIM card to work on the satellite network. Must select a service provider and pay a fee. |
| Dimensions | 150 x 200 x 45 mm (5.9 x 7.87 x 1.77 in.) |
| Weight | 1.12 kg (2.47 lb) |
Frequency | |
| Satellite Transmit | 1626.5 to 1675 MHz |
| Satellite Receive | 1518 to 1559 MHz |
| GPS | 1574.42 to 1576.42 MHz |
Power Consumption | |
| Transmit | < 1.667 A (@ 12 Vdc) |
| Narrow Beam without Transmit | 250 mA (@ 12 Vdc) |
| Idle (Regional Beam) | < 0.833 mA (@ 12 Vdc) |
| Off (Wake on Packet) |
|
| Off (GPIO Control) | 0 mA (@ 12 Vdc) |
Interfaces | |
| Power Input | Screw terminal, reverse polarity protected |
| Antenna Connector | TNC jack |
| Ethernet | 10BaseT, RJ45 connector (used for data logger or PC communications) |
| USB Connector | Type B (used for PC communications) |
| RS-232 Connector | GNSS DB9 (used for GPIO sleep pin control) |
Antenna | |
| Wind Loading | Survival wind loading up to 160.93 kph (100 mph) |
| Water & Dust Ingress Protection Rating | IP-65 Compliant |
| Cable Connectors | Type N male-to-type N male (Type N-to-TNC adapter included for antenna-to-terminal connection) |
| Cable Length | 10 m (30 ft) |
| Dimensions | 38.5 x 38.5 x 3.3 cm (15.2 x 15.2 x 1.3 in.) without mount |
| Weight | 1.85 kg (4.08 lb) without mount |
Features
Applications
Remote Environmental Monitoring
Oil & Gas Field Communications
Water Resource Management
Disaster Management & Early Warning Systems
