The BS400-04 Economical Tipping Bucket Rainfall Sensor is a compact and reliable instrument that measures rainfall by converting precipitation into pulse signals. Featuring high accuracy, stable performance, a debris-proof mesh funnel, clog-free design, and a durable ABS body with built-in leveler, it ensures precise and trouble-free rainfall monitoring.
Specifications
Item | Specification |

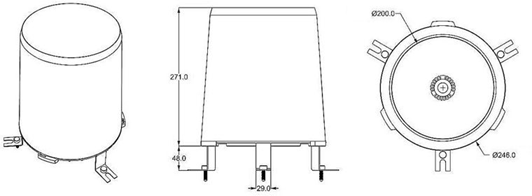

Collector | Diameter :φ200mm, height: 271mm |
Measured Rainfall Intensity | Max: 4mm/min |
Allow Rainfall Intensity | Max: 8mm/min |
Resolution | 0.2mm |
Accuracy (2mm/min) | ±4% |
Maximum Load Voltage | 30VDC (Pulse Output) |
Maximum Load Current | 20mA |
Output | Pulses(@10kΩG0.01uF), RS485(12-24VDC Supply) |
Operating Temperature | 0 ~ 60°C @ 0% ~ 100%RH |
Main Material | Rainfall Collector and Tipping Bucket: ABS, Supporting Leg:304SS |
Weight (Unpacked) | 2kg |
Meteorological
Climate Research
Water Supply System
Disaster Monitoring
